GS 4390-5390 Scissor Lifts

Measurements • 40 ft (12.36 m) working height • 18 ft 4 in (5.59 m) horizontal reach • Up to 500 lbs (227 kg) lift capacity
Productivity • Industry leading working envelope • Extension boom • Self-leveling platform • Variable speed control system • AC wiring to platform • Hydraulic outriggers • Automatic 11° leveling system • Outrigger interlocks • Mechanical parking brake • Hydraulic surge brakes • 2 in (5.08 cm) coupler lever lock • Hitch pull bar • Adjustable hitch with coupler lever lock • Single jockey wheels • 359° non-continuous turntable rotation • Easy to access batteries • Hour meter • Tilt alarm / sensor • Forklift pockets • Illuminated outrigger indicators • Highway safety chains with snap hook

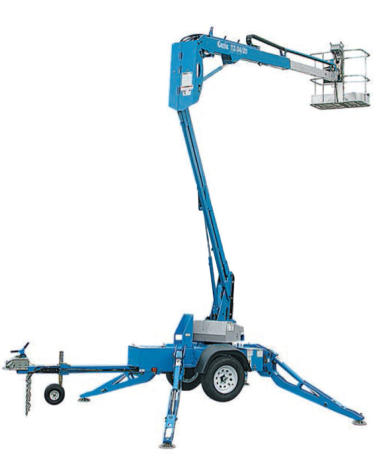

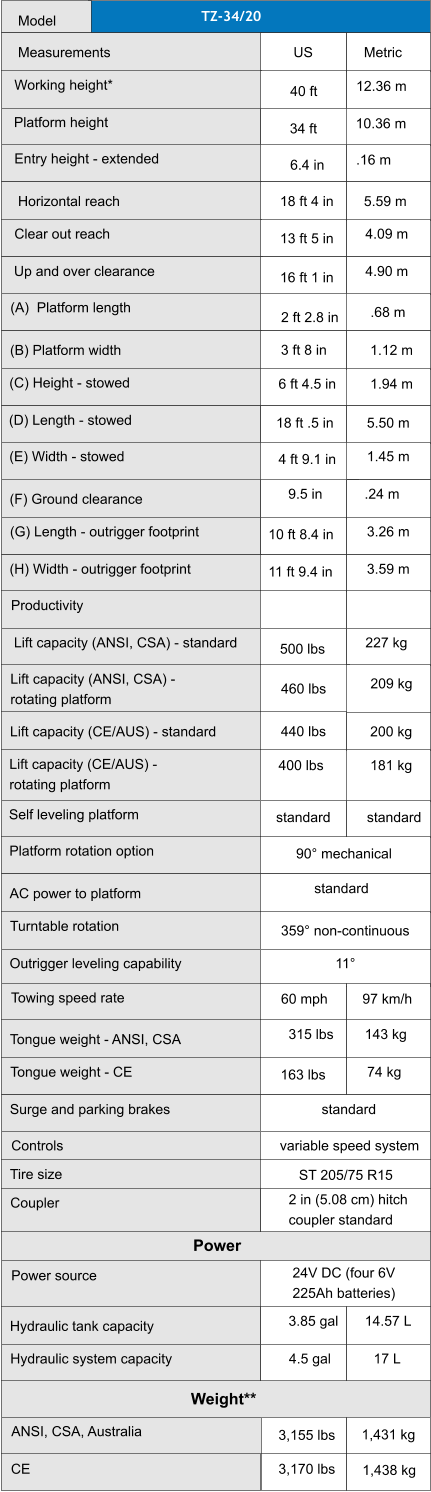

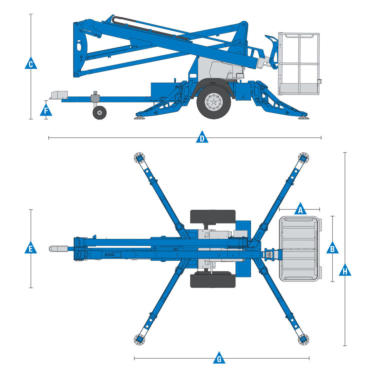

TZ-34/20 Model Measurements US Working height* 40 ft Metric 12.36 m Platform height 34 ft 10.36 m Entry height - extended 6.4 in .16 m Horizontal reach 18 ft 4 in Clear out reach 13 ft 5 in 5.59 m 4.09 m Up and over clearance 16 ft 1 in 4.90 m (A) Platform length 2 ft 2.8 in .68 m (B) Platform width 3 ft 8 in (C) Height - stowed 6 ft 4.5 in 1.12 m 1.94 m (D) Length - stowed 18 ft .5 in 5.50 m (E) Width - stowed 4 ft 9.1 in 1.45 m (F) Ground clearance 9.5 in (G) Length - outrigger footprint 10 ft 8.4 in .24 m 3.26 m (H) Width - outrigger footprint 11 ft 9.4 in 3.59 m Productivity Lift capacity (ANSI, CSA) - standard 500 lbs 227 kg Lift capacity (ANSI, CSA) - rotating platform 460 lbs 209 kg Lift capacity (CE/AUS) - standard 440 lbs Lift capacity (CE/AUS) - rotating platform 400 lbs 200 kg 181 kg Self leveling platform standard standard Platform rotation option 90° mechanical AC power to platform standard Turntable rotation 359° non-continuous Outrigger leveling capability 11° Towing speed rate 60 mph 97 km/h Tongue weight - ANSI, CSA 315 lbs Tongue weight - CE 163 lbs 143 kg 74 kg Surge and parking brakes standard Controls variable speed system Tire size ST 205/75 R15 Coupler 2 in (5.08 cm) hitch coupler standard Power Power source 24V DC (four 6V 225Ah batteries) Hydraulic tank capacity 3.85 gal Hydraulic system capacity 4.5 gal 14.57 L 17 L Weight** ANSI, CSA, Australia 3,155 lbs 1,431 kg CE 3,170 lbs 1,438 kg
Standard Features
Power • 24V DC power source (four 6V 225 Ah batteries)
Configurations
Options & Accessories
Platform Options • Aluminum 26.8 x 44 in (.68 x 1.12 m) • 90° mechanical platform rotation • LED brake lights (ANSI)
Productivity • 90° mechanical platform rotation • Wheel chocks • Fluorescent tube caddy • Full size spare tire • Flashing beacon • Non-marking outrigger footpads • Battery charge indicator (BCI) • Tool tray • Bicycle guard (CE) • Horn • LED brake lights
Coupler Options • Adjustable hitch - 2 in (5.08 cm) ball coupler - 2 5/16 in (5.87 cm) ball coupler - 2 1/2 in (6.53 cm) I.D. pintle ring coupler - Clevis coupler
Power • 24V DC power source
Tire Options • ST 205/75 R15 tires (ANSI, CSA) • 185 R14C tires (CE) • Dual 10 in (25.4 cm) air filled tires

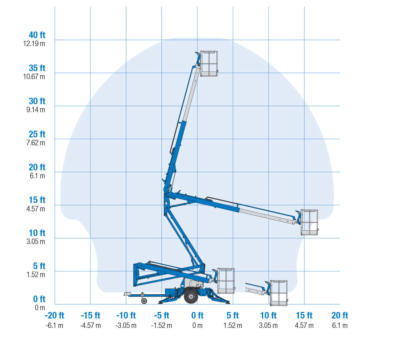

Range Of Motion TZ-34/20
